| Name Of Product |
|
| U CHANNEL - (IPU) |
| Information of Product |
|
U CHANNEL - (IPU)
|
| |
|
|
|
|
|

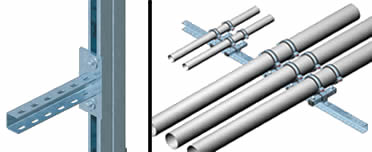

APPLICATION
|
TECHNICAL PICTURE
|
| |
| Code |
Size (mm) |
A (mm) |
B (mm) |
s (mm) |
E (mm) |
G (mm) |
H (mm) |
F (mm) |
L (mm) |
| IPU3030302000 |
30x30x3 |
30 |
30 |
3 |
12 |
20 |
10 |
40 |
2000 |
| IPU3040402000 |
40x40x3 |
40 |
40 |
3 |
17 |
25 |
12,5 |
40 |
2000 |
| IPU4040402000 |
40x40x4 |
40 |
40 |
4 |
15 |
25 |
12,5 |
40 |
2000 |
| IPU4050500500 |
50x50x4 |
50 |
50 |
4 |
20 |
25 |
12,5 |
40 |
500 |
| IPU4050502000 |
50x50x4 |
50 |
50 |
4 |
20 |
25 |
12,5 |
40 |
2000 |
| IPU4050502500 |
50x50x4 |
50 |
50 |
4 |
20 |
25 |
12,5 |
40 |
2500 |
|
|
|
