| Name Of Product |
|
| BEAM CLAMP - (90386720) |
| Information of Product |
|
BEAM CLAMP - (90386720)
|
- For suspending of piping, airducts and springler systems from steel
constructions and profiles with threaded rods.
-
No drilling or welding needed.
-
Height adjustments can easily be accomplished.
-
Electro galvanized against corrosion protection (Plating thickness
8-10 micron)
|

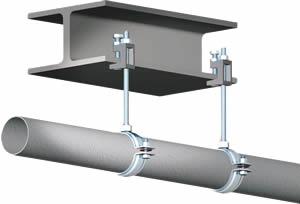

APPLICATION
|
TECHNICAL PICTURE
|
|
|
| 0 |
Size |
Recommended Load (KN) |
| 90386720 |
M8-M10 |
3 |
|
|
Code
|
Size
|
Clamping Range N (mm)
|
A (mm)
|
B (mm)
|
C (mm)
|
ØD (mm)
|
E (mm)
|
M
|
Beam Thickness mm
|
Quantity / Box
|
Weight / Box (Kg)
|
| 90386720 |
M8-M10
|
0 - 20
|
29
|
23
|
46
|
11
|
50
|
10
|
17
|
50
|
8,46
|
|
|
|
