| BASE PLATE WITH NUT - (IGL) |
| Information of Product |
|
BASE PLATE WITH NUT - (IGL)
|
- Base plates are used for fastening of heavy duty pipe clamps to ceilings,
floors and walls.
- Electro galvanized against corrosion protection (Plating thickness
8-10 micron)
|
|

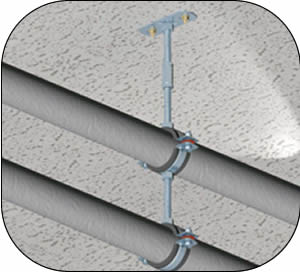

APPLICATION
|
TECHNICAL PICTURE
|
| |
|
| Size ( mm ) |
Recommended Load (KN) |
| 3x30x80 |
2,2 |
| 4x40x120 |
3 |
|
Code
|
Zemin Plakası Ölçüsü mm
|
Somun Ölçü mm
|
A (mm)
|
B (mm)
|
C (mm)
|
G (mm)
|
H (mm)
|
E (mm)
|
S (mm)
|
Quantity / Box
|
Weight / Box (Kg)
|
|
IGL208
|
3x30x80
|
M8
|
80
|
30
|
15
|
18
|
9
|
52
|
3
|
100
|
5,38
|
|
IGL210
|
3x30x80
|
M10
|
80
|
30
|
16
|
18
|
9
|
52
|
3
|
100
|
6,1
|
|
IGL212
|
3x30x80
|
M12
|
80
|
30
|
18
|
18
|
9
|
52
|
3
|
100
|
6,72
|
|
IGS208
|
4x40x120
|
M8
|
120
|
40
|
16
|
18
|
11
|
80
|
4
|
100
|
14
|
|
IGS210
|
4x40x120
|
M10
|
120
|
40
|
17
|
18
|
11
|
80
|
4
|
100
|
14,8
|
|
IGS212
|
4x40x120
|
M12
|
120
|
40
|
18
|
18
|
11
|
80
|
4
|
100
|
15,42
|
|
IGS216
|
4x40x120
|
M16
|
120
|
40
|
22
|
18
|
11
|
80
|
4
|
100
|
17,35
|
|
|
|
