| BASE PLATE WITH SLEEVE - (IGS) |
| Information of Product |
|
BASE PLATE WITH SLEEVE - (IGS)
|
- Base plates are used for fastening of heavy duty pipe clamps to ceilings,
floors and walls.
- Electro galvanized against corrosion protection (Plating thickness
8-10 micron)
|
|

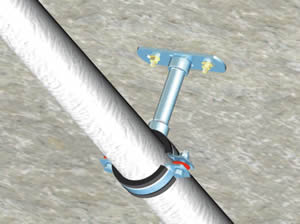

APPLICATION
|
TECHNICAL PICTURE
|
| |
|
| Size |
Recommended Load (KN) |
| 4x40x120 |
5 |
|
Code
|
Base Plate Size mm
|
Sleeve Size mm
|
A (mm)
|
B (mm)
|
C (mm)
|
G (mm)
|
H (mm)
|
E (mm)
|
S (mm)
|
Quantity / Box
|
Weight / Box (Kg)
|
|
IGS2M15
|
4x40x120
|
1/2"
|
120
|
40
|
19
|
18
|
11
|
80
|
4
|
100
|
16,6
|
|
IGS2M20
|
4x40x120
|
3/4"
|
120
|
40
|
21
|
18
|
11
|
80
|
4
|
100
|
18,6
|
|
IGS2M25
|
4x40x120
|
1"
|
120
|
40
|
25
|
18
|
11
|
80
|
4
|
100
|
23,1
|
|
|
|
