Name Of Product

CHEMICAL CARTRIDGE - 345cc - (IDKID)
Information of Product
CHEMICAL CARTRIDGE - 345cc - (IDKID)
  • A safe system for multi purpose fastening operations

  • The material inside the cartridge is resin (?) mortar and hardner

  • These ingredients are in two seperate cells in the cartridge

  • The cartridge is used with a applicator gun, when the applicator gun is actuated

  • The two ingredients are mixed together forming a very strong anchoring components

  • Suitable at wet circumstances

  • Does not exert pressure on holding surfaces applied, therefore it is suitable for near edge applications

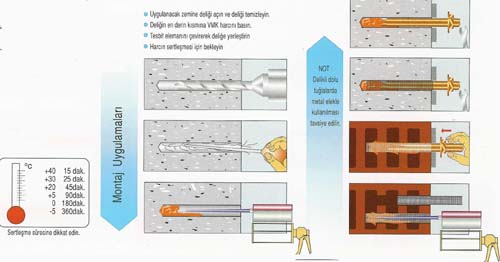

APPLICATION

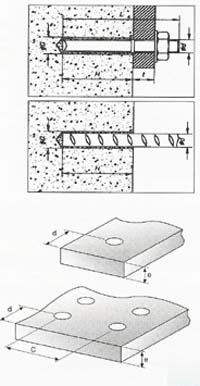

TECHNICAL PICTURE


CHEMICAL CARTRIDGE - 345cc - (IDKID)


0
0
0
0
0
0
Max.permissible load for single anchor (kN) ] B25
] B25
3,4
4,9
6,8
9,8
14,8
16
maximum filling quantity Ad
40
30
25
20
15
5
axial distance c ] Cm
20
22
27
31
42
42
distance from edge d ] Cm
10
11
13,5
15,5
21
21
substrade thickness e ] Cm
13
14
16
17,5
23
23
drill diameter ØD mm
10
12
14
18
24
28
hole depth H mm
80
90
110
125
170
200
diameter of the reinforcement bar Ød mm
8
10
12
16
20
24

subsurface temperature °C
40
30
20
5
0
-5
setting time dak.
2
3
4
12
25
45
curing time dak.

15
25
45
90
180
360
