| Product Name |
|
| BOLT ANCHORS - (IDDD) |
| Description |
|
BOLT ANCHORS - (IDDD)
|
- Provides fast and safe assembly with bolt and conical nut
- Suitable for medium duty loads and thick parts
Electro galvanized against corrosion protection (Plating thickness 8-10 micron)
|

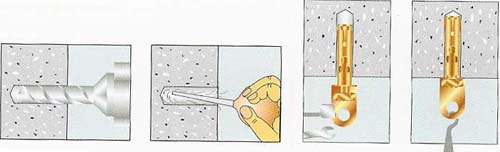

APPLICATION
|
TECHNICAL PICTURE
|
|
|
|
| |
|
CEILING SUSPENSION ANCHOR - (IDDT)
|
Size
|
M6
|
| Max.permissible load for single anchor (kN) |
0,5
|
|
Code
|
M
|
L (mm)
|
ØD (mm)
|
H (mm)
|
t* max (mm)
|
Distance Between Anchors c(mm)
|
Distance From Edge d(mm)
|
Fastenable Thickness e(mm)
|
Quantity / Pack
|
Weight / Pack (kg)
|
| IDDT06050 |
M6
|
50
|
8
|
55
|
7
|
130
|
90
|
100
|
500
|
10,17
|
|
|
|
