STANDART PIPE CLAMP WITH RUBBER PROFILE (HANGING
NUT M12xM12) - (IKNS)
|
|
|

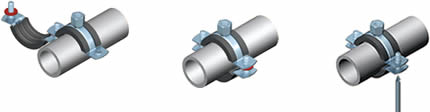

APPLICATION
|
TECHNICAL PICTURE
|
|
|
|
| |
|
STANDART PIPE CLAMP WITH RUBBER PROFILE (HANGING NUT M12xM12) -
(IKNS)
| Size Inch |
Breaking Load (KN) |
Recommended Max Load (KN) |
| 1/8" -2" |
4.80 |
1.60 |
| 67 - 108 |
6.90 |
2.30 |
| 4" - 8" |
7.80 |
2.60 |
|
Code
|
Size Inch
|
Clamping Range
|
L
|
H
|
M
|
sxB
|
A
|
Quantity / Box
|
Weight / Box (Kg)
|
|
IKNS006
|
1/8"
|
8-11
|
52,5
|
23,5
|
M6
|
1.5x20
|
M12
|
100
|
5,64
|
|
IKNS008
|
1/4"
|
11-15
|
56,5
|
26
|
M6
|
1.5x20
|
M12
|
100
|
6,09
|
|
IKNS010
|
3/8"
|
16-20
|
60,5
|
28
|
M6
|
1.5x20
|
M12
|
100
|
6,54
|
|
IKNS015
|
1/2"
|
20-24
|
64,5
|
30
|
M6
|
1.5x20
|
M12
|
100
|
6,99
|
|
IKNS020
|
3/4"
|
25-80
|
70,5
|
33
|
M6
|
1.5x20
|
M12
|
100
|
7,54
|
|
IKNS025
|
1"
|
32-35
|
78
|
36,5
|
M6
|
1.5x20
|
M12
|
100
|
8,34
|
|
IKNS032
|
1 1/4"
|
39-46
|
91.5
|
41
|
M6
|
1.5x20
|
M12
|
50
|
5,02
|
|
IKNS040
|
1 1/2"
|
48-53
|
99
|
44,5
|
M6
|
1.5x20
|
M12
|
50
|
5,47
|
|
IKNS047
|
54-58
|
54-58
|
105
|
47,5
|
M6
|
1.5x20
|
M12
|
50
|
5,87
|
|
IKNS050
|
2"
|
59-66
|
112
|
51
|
M6
|
1.5x20
|
M12
|
50
|
6,27
|
|
IKNS055
|
67-73
|
67-73
|
125
|
56
|
M6
|
1.5x20
|
M12
|
25
|
5,52
|
|
IKNS065
|
2 1/2"
|
74-80
|
134
|
60
|
M6
|
1.5x20
|
M12
|
25
|
5,93
|
|
IKNS072
|
81-87
|
81-87
|
141
|
64
|
M6
|
2x25
|
M12
|
25
|
6,12
|
|
|
