| STANDART PIPE CLAMP WITHOUT RUBBER PROFILE (WELDED WOOD SCREW) - (IKTL) |
| Description |
|
STANDART PIPE CLAMP WITHOUT RUBBER PROFILE (WELDED
WOOD SCREW) - (IKTL)
|
|
|

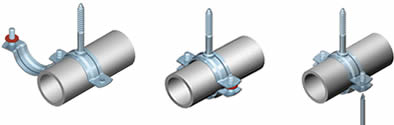

APPLICATION
|
TECHNICAL PICTURE
|
|
|
|
| |
|
STANDART PIPE CLAMP WITHOUT RUBBER PROFILE (WELDED WOOD SCREW) -
(IKTL)
| Size Inch |
Breaking Load (KN) |
Recommended Max Load (KN) |
| 1/2 " - 1 1/4" |
3.90 |
1.30 |
| 1 1/2" - 74 |
4.80 |
1.60 |
| 2 1/2" - 3" |
6.90 |
2.30 |
|
Code
|
Size Inch
|
Clamping Range
|
L
|
H
|
M
|
sxB
|
A
|
Quantity / Box
|
Weight / Box (Kg)
|
| IKTL015 |
1/2"
|
18-23
|
54.5
|
76
|
M5
|
1.5x20
|
Ø 7 Ağaç Vida
|
100
|
4,3
|
| IKTL017 |
24-26
|
24-26
|
58.5
|
78
|
M5
|
1.5x20
|
Ø 7 Ağaç Vida
|
100
|
4,67
|
| IKTL020 |
3/4"
|
27-31
|
62.5
|
80
|
M5
|
1.5x20
|
Ø 7 Ağaç Vida
|
100
|
5,01
|
| IKTL025 |
1"
|
32-37
|
68.5
|
83
|
M5
|
1.5x20
|
Ø 7 Ağaç Vida
|
100
|
5,55
|
| IKTL032 |
1 1/4"
|
39-44
|
76
|
86,5
|
M5
|
1.5x20
|
Ø 7 Ağaç Vida
|
100
|
4,7
|
| IKTL040 |
1 1/2"
|
46-54
|
91.5
|
91
|
M6
|
1.5x20
|
Ø 7 Ağaç Vida
|
50
|
3,72
|
| IKTL050 |
2"
|
54-61
|
99
|
91,5
|
M6
|
1.5x20
|
Ø 7 Ağaç Vida
|
50
|
4,02
|
| IKTL053 |
62-67
|
62-67
|
105
|
97,5
|
M6
|
1.5x20
|
Ø 7 Ağaç Vida
|
50
|
4,32
|
| IKTL055 |
68-74
|
68-74
|
112
|
101
|
M6
|
1.5x20
|
Ø 7 Ağaç Vida
|
50
|
4,61
|
| IKTL065 |
2 1/2"
|
75-82
|
125
|
106
|
M6
|
1.5x20
|
Ø 7 Ağaç Vida
|
50
|
7,58
|
| IKTL080 |
3"
|
83-89
|
134
|
110
|
M6
|
1.5x20
|
Ø 7 Ağaç Vida
|
50
|
8,19
|
|
|
|
