| Product Name |
|
| STANDART PIPE CLAMP WITH RUBBER PROFILE & BOLT SCREW AND NYLON PLUG - (IKISS) |
| Description |
|
STANDART PIPE CLAMP WITH RUBBER PROFILE & BOLT
SCREW AND NYLON PLUG - (IKISS)
|
|
|

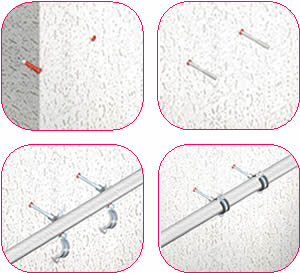

APPLICATION
|
TECHNICAL PICTURE
|
|
|
|
| |
|
STANDART PIPE CLAMP WITH RUBBER PROFILE & BOLT SCREW AND NYLON
PLUG - (IKISS)
| Size Inch |
Breaking Load (KN) |
Recommended Max Load (KN) |
1/8" - 1"
|
3.90 |
1.30 |
| 1 1/4" - 2" |
4.80 |
1.60 |
| 67 - 2 1/2" |
6.90 |
2.30 |
|
Code
|
Size Inch
|
Clamping Range
|
L
|
H
|
M
|
sxB
|
Ø d
|
Trifon
|
Trifon Anahtar Ağzı A
|
Quantity / Box
|
Weight / Box (Kg)
|
| IKISS006 |
1/8"
|
8-11
|
50.5
|
91,5
|
M5
|
1.5x20
|
10
|
M8x80
|
M8
|
100
|
7,4
|
| IKISS008 |
1/4"
|
11-15
|
54.5
|
94
|
M5
|
1.5x20
|
10
|
M8x80
|
M8
|
100
|
7,85
|
| IKISS010 |
3/8"
|
16-20
|
58.5
|
96
|
M5
|
1.5x20
|
10
|
M8x80
|
M8
|
100
|
8,3
|
| IKISS015 |
1/2"
|
20-24
|
62,5
|
98
|
M5
|
1.5x20
|
10
|
M8x80
|
M8
|
100
|
8,75
|
| IKISS020 |
3/4"
|
25-28
|
68,5
|
101
|
M5
|
1.5x20
|
10
|
M8x80
|
M8
|
80
|
7,28
|
| IKISS025 |
1"
|
32-35
|
76
|
104,5
|
M5
|
1.5x20
|
10
|
M8x80
|
M8
|
70
|
7,07
|
| IKISS032 |
1 1/4"
|
39-46
|
91,5
|
109
|
M6
|
1.5x20
|
10
|
M8x80
|
M8
|
50
|
5,9
|
| IKISS040 |
1 1/2"
|
48-53
|
99
|
112,5
|
M6
|
1.5x20
|
10
|
M8x80
|
M8
|
40
|
5,08
|
| IKISS047 |
54-58
|
54-58
|
105
|
115,5
|
M6
|
1.5x23
|
10
|
M8x80
|
M8
|
40
|
5,4
|
| IKISS050 |
2"
|
59-66
|
112
|
119
|
M6
|
1.5x20
|
10
|
M8x80
|
M8
|
30
|
4,29
|
| IKISS055 |
67-73
|
67-73
|
125
|
144
|
M6
|
2x25
|
12
|
M10x100
|
M10
|
30
|
7,52
|
| IKISS065 |
2 1/2"
|
74-80
|
134
|
148
|
M6
|
2x25
|
12
|
M10x100
|
M10
|
50
|
13
|
|
|
|
