| Product Name |
|
| STANDART PIPE CLAMP WITH RUBBER PROFILE&COMBI NUT(M8/M10)SIDE SCREW (M5-M6) - (IKKS) |
| Description |
|
STANDART PIPE CLAMP WITH RUBBER PROFILE&COMBI
NUT(M8/M10)SIDE SCREW (M5-M6) - (IKKS)
|
|
|

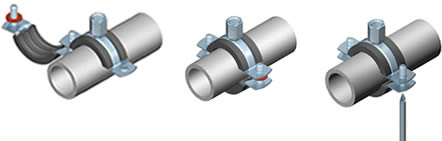

APPLICATION
|
TECHNICAL PICTURE
|
|
|
|
| |
|
STANDART PIPE CLAMP WITH RUBBER PROFILE&COMBI NUT(M8/M10)SIDE
SCREW (M5-M6) - (IKKS)
| Size Inch |
Breaking Load (KN) |
Recommended Max Load (KN) |
1/8" - 1"
|
3.90 |
1.30 |
| 1 1/4" - 2" |
4.80 |
1.60 |
| 67 - 108 |
6.90 |
2.30 |
| 4" - 8" |
7.80 |
2.60 |
|
Code
|
Size Inch
|
Clamping Range
|
L
|
H
|
M
|
sxB
|
A
|
Quantity / Box
|
Weight / Box (Kg)
|
| IKKS006 |
1/8"
|
8-11
|
50.5
|
29,5
|
M5
|
1.5x20
|
M8/M10
|
100
|
4,86
|
| IKKS008 |
1/4"
|
11-15
|
54.5
|
32
|
M5
|
1.5x20
|
M8/M10
|
100
|
5,27
|
| IKKS010 |
3/8"
|
16-20
|
58.5
|
34
|
M5
|
1.5x20
|
M8/M10
|
100
|
5,72
|
| IKKS015 |
1/2"
|
20-24
|
62.5
|
36
|
M5
|
1.5x20
|
M8/M10
|
100
|
6,17
|
| IKKS020 |
3/4"
|
25-28
|
68.5
|
39
|
M5
|
1.5x20
|
M8/M10
|
100
|
6,72
|
| IKKS025 |
1"
|
32-35
|
76
|
42,5
|
M5
|
1.5x20
|
M8/M10
|
100
|
7,52
|
| IKKS032 |
1 1/4"
|
39-46
|
91.5
|
47
|
M5
|
1.5x20
|
M8/M10
|
50
|
4,61
|
| IKKS040 |
1 1/2"
|
48-53
|
99
|
50,5
|
M5
|
1.5x20
|
M8/M10
|
50
|
5,06
|
| IKKS047 |
54-58
|
54-58
|
105
|
53,5
|
M6
|
1.5x20
|
M8/M10
|
50
|
5,46
|
| IKKS050 |
2"
|
59-66
|
112
|
57
|
M6
|
1.5x20
|
M8/M10
|
50
|
5,86
|
| IKKS055 |
67-73
|
67-73
|
125
|
62
|
M6
|
2x25
|
M8/M10
|
25
|
4,85
|
| IKKS065 |
2 1/2"
|
74-80
|
134
|
66
|
M6
|
2x25
|
M8/M10
|
25
|
5,26
|
| IKKS072 |
81-87
|
81-87
|
141
|
70
|
M6
|
2x25
|
M8/M10
|
25
|
5,45
|
| IKKS080 |
3"
|
87-94
|
146.5
|
71,5
|
M6
|
2x25
|
M8/M10
|
25
|
5,71
|
| IKKS085 |
95
|
95-98
|
151
|
75,5
|
M6
|
2x25
|
M8/M10
|
25
|
6,75
|
| IKKS089 |
99-108
|
99-108
|
159,5
|
79,5
|
M6
|
2x25
|
M8/M10
|
25
|
7,25
|
| IKKS100 |
4"
|
110-116
|
173
|
85
|
M6
|
2x25
|
M8/M10
|
25
|
7,75
|
| IKKS112 |
120-128
|
120-128
|
186
|
91,5
|
M6
|
2x25
|
M8/M10
|
25
|
8,25
|
| IKKS118 |
129-134
|
129-134
|
192
|
94,5
|
M6
|
2x25
|
M8/M10
|
25
|
8,55
|
| IKKS125 |
5"
|
135-143
|
199
|
98
|
M6
|
2x25
|
M8/M10
|
25
|
8,95
|
| IKKS134 |
149-161
|
149-161
|
215
|
106
|
M6
|
2x25
|
M8/M10
|
25
|
9,45
|
| IKKS150 |
6"
|
162-170
|
227
|
110,5
|
M6
|
2x25
|
M8/M10
|
25
|
9,95
|
| IKKS200 |
8"
|
207-219
|
280.7
|
138
|
M6
|
2x25
|
M8/M10
|
20
|
10,46
|
|
|
|
