HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE (WITHOUT NUT) - (IKA1)
Description
HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE (WITHOUT NUT) - (IKA1)

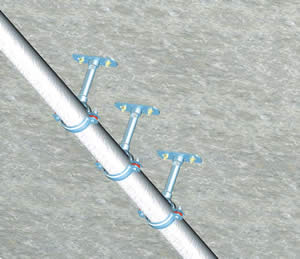

  • Heavy duty pipe clamps used for mounting of pipes to the walls ( vertical / horizontal ), ceilings and floors
  • Without hanging nut, assemble through two threaded nuts suitable to the application and loads, with height adjustment ability ( rods / nuts should be ordered seperately )
  • EPDM lining for ;
    >> noise reduction level up to 15 dB according to DIN 4109
    >> vibration reduction
    >> partial compensation of thermal expansion
    >> Packing : Unassembled
  • Electro galvanized against corrosion protection (Plating thickness 8-10 micron)
APPLICATION
TECHNICAL PICTURE


HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE (WITHOUT NUT) - (IKA1)

Size Inch
Breaking Load (KN)
Recommended Max Load (KN)
3/4 " - 74
11,0
2,75
2 1/2" - 140
15,0
3,75
5" - 283
24,0
6,00
12" - 20"
35.1
11,7



Code
Size Inch
Clamping
Range
L
H
M
sxB
A
Quantity / Box
Weight
/ Box
( Kg )
IKBM25020
3/4"
27 - 31
84
41
M8
2,5x30
1"
50
10,1
IKBM25025
1"
32 - 37
90
44
M8
2,5x30
1"
50
10,35
IKBM25032
1 1/4"
39 - 46
98
48
M8
2,5x30
1"
50
10,85
IKBM25040
1 1/2"
47 - 54
106
52
M8
2,5x30
1"
50
11,1
IKBM25050
2"
54 - 61
114,5
56
M8
2,5x30
1"
50
12,85
IKBM25053
60 - 67
60 - 67
120,5
59
M8
2,5x30
1"
50
13,85
IKBM25055
68 - 74
68 - 74
127
62
M8
2,5x30
1"
50
14,9
IKBM25065
2 1/2"
75 - 81
143,5
67
M10
3x30
1"
25
7,575
IKBM25080
3"
83 - 92
152
71
M10
3x30
1"
25
8,15
IKBM25085
90 - 98
90 - 98
160
75
M10
3x30
1"
25
8,475
IKBM25087
94 - 104
94 - 104
163
76,5
M10
3x30
1"
25
8,65
IKBM25092
104 - 110
104 - 110
171
80,5
M10
3x30
1"
25
8,9
IKBM25100
4"
110 - 119
179
84,5
M10
3x30
1"
25
9,25
IKBM25108
117 - 126
117 - 126
188
89
M10
3x30
1"
25
9,45
IKBM25120
129 - 140
129 - 140
201
95,5
M10
3x30
1"
25
10,2
IKBM25125
5"
138 -143
226,5
100,5
M12
4x40
1"
10
9,32
IKBM25133
144 -154
144 - 154
233,5
104
M12
4x40
1"
10
9,57
IKBM25165
169 - 177
169 - 177
256,5
111,5
M12
4x40
1"
10
9,77
IKBM25210
218 - 230
218 - 230
316
138,5
M12
4x40
1"
10
11,37
IKBM25275
270 - 283
270 - 283
365
165,5
M12
4x40
1"
10
13,92
IKBM25300
12"
324
421
193
M16
5x50
1"
5
14,07
IKBM25350
14"
355,6
453
208,5
M16
5x50
1"
5
14,95
IKBM25400
16"
406,4
504,5
234,5
M16
5x50
1"
5
16,72
IKBM25450
18"
457
564,2
251,5
M16
7x70
1"
2
11,12
IKBM25500
20"
508
621,5
282,5
M16
7x70
1"
2
12,52
