HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE & 3/4"
SLEEVE- (IKAM20) | | |

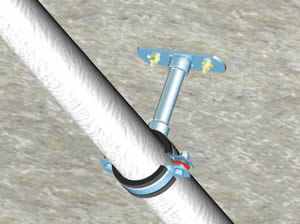

APPLICATION  |
TECHNICAL PICTURE
|
| | |
HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE & 3/4" SLEEVE- (IKAM20)
| Size Inch | Breaking
Load (KN) | Recommended Max Load (KN)
| | 1/2 " - 2" | 11,0 |
2,75 | | 129 - 10" | 15,0 |
3,75 | 5" - 283
|
24,0 | 6,00 |
| 12" - 20" | 35.1 |
11,7 |
| Code |
Size Inch | Clamping
Range | L |
H | M |
s x B | A |
Quantity / Box | Weight
/ Box (Kg) | | IKAM20015 |
1/2" | 20-24 |
84 | 37 |
M8 | 2,5x30 |
¾" | 50 |
10,8 | | IKAM20020 |
3/4" | 25-30 |
90 | 40 |
M8 | 2,5x30 |
¾" | 50 |
11,3 | | IKAM20025 |
1" | 32 -
38 | 98 |
44 | M8 |
2,5x30 | ¾" |
50 | 12,8 |
| IKAM20032 | 1 1/4" |
39-46 | 106 |
48 | M8 |
2,5x30 | ¾" |
50 | 12,05 |
| IKAM20040 | 1 1/2" |
48-53 | 114,5 |
52 | M8 |
2,5x30 | ¾" |
50 | 14,05 |
| IKAM20047 | 54-58 |
54-58 | 120,5 |
55 | M8 |
2,5x30 | ¾" |
50 | 15,2 |
| IKAM20050 | 2" |
59 - 66 | 127 |
58 | M8 |
2,5x30 | ¾" |
50 | 16,2 |
| IKAM20055 | 67-73 |
67-73 | 143,5 |
63 | M10 |
3x30 | ¾" |
25 | 8,475 |
| IKAM20065 | 2 1/2" |
74-80 | 152 |
67 | M10 |
3x30 | ¾" |
25 | 9,125 |
| IKAM20072 | 80-87 |
80-87 | 160 |
71 | M10 |
3x30 | ¾" |
25 | 9,625 |
| IKAM20080 | 3" |
87-94 | 163 |
72,5 | M10 |
3x30 | ¾" |
25 | 9,925 |
| IKAM20085 | 95 |
95-98 | 171 |
76,5 | M10 |
3x30 | ¾" |
25 | 10,425 |
| IKAM20089 | 99-108 |
99-108 | 179 |
80,5 | M10 |
3x30 | ¾" |
25 | 10,575 |
| IKAM20100 | 4" |
108-116 | 188 |
85 | M10 |
3x30 | ¾" |
25 | 11,125 |
| IKAM20112 | 120-129 |
120-129 | 201 |
91,5 | M10 |
3x30 | ¾" |
25 | 12,175 |
| IKAM20118 | 129-135 |
129-135 | 226,5 |
96,5 | M12 |
4x40 | ¾" |
10 | 10,31 |
| IKAM20125 | 5" |
135-143 | 233,5 |
100 | M12 |
4x40 | ¾" |
10 | 10,71 |
| IKAM20150 | 6" |
162-168 | 256,5 |
107,5 | M12 |
4x40 | ¾" |
10 | 11,01 |
| IKAM20200 | 8" |
206-220 | 316 |
134,5 | M12 |
4x40 | ¾" |
10 | 13,51 |
| IKAM20250 | 10" |
260-274 | 365 |
161,5 | M12 |
4x40 | ¾" |
10 | 15,76 |
| *IKAM20300 | 12" |
324 | 421 |
189 | M16 |
5x50 | ¾" |
5 | 13,85 |
| *IKAM20350 | 14" |
355,6 | 453 |
204,5 | M16 |
5x50 | ¾" |
5 | 14,73 |
| *IKAM20400 | 16" |
406,4 | 504,5 |
230,5 | M16 |
5x50 | ¾" |
5 | 16,5 |
| *IKAM20450 | 18" |
457 | 564,2 |
247,5 | M16 |
7x70 | ¾" |
2 | 10,9 |
| *IKAM20500 | 20" |
508 | 621,5 |
276,5 | M16 |
7x70 | ¾" |
2 | 12,3 |
| |
