Product Name

HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE (DOUBLE HANGING NUT) - (IKAC)
Description
HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE (DOUBLE HANGING NUT) - (IKAC)

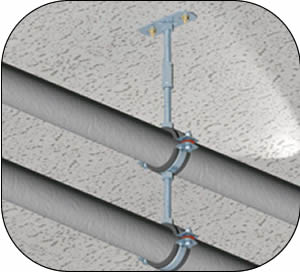

APPLICATION

TECHNICAL PICTURE



HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE (DOUBLE HANGING NUT) - (IKAC)

Size Inch
Breaking
Load (KN)
Recommended Max Load (KN)
1/2 " - 2"
11,0
2,75
67 - 129
15,0
3,75
129 - 10"
24,0
6,00
12" - 20"
35.1
11,7



Code
Size Inch
Clamping
Range
L
H
M
s x B
A
Quantity / Box
Weight
/ Box (Kg)
IKAC12015
1/2"
20-24
84
32
M12
2,5x30
M8
50
10,8
IKAC12020
3/4"
25-30
90
35
M12
2,5x30
M8
50
11,3
IKAC12025
1"
32-38
98
39
M12
2,5x30
M8
50
11,8
IKAC12032
1 1/4"
39-46
106
43
M12
2,5x30
M8
50
12
IKAC12040
1 1/2"
48-53
114,5
47
M12
2,5x30
M8
50
14
IKAC12047
54-58
54-58
120,5
50
M12
2,5x30
M8
50
15,2
IKAC12050
2"
59-66
127
53
M12
2,5x30
M8
50
16
IKAC12055
67-73
67-73
143,5
58
M12
3x30
M10
25
8,6
IKAC12065
2 1/2"
74-80
152
62
M12
3x30
M10
25
9,3
IKAC12072
80-87
80-87
160
66
M12
3x30
M10
25
9,8
IKAC12080
3"
87-94
163
67,5
M12
3x30
M10
25
10,1
IKAC12085
95
95-98
171
71,5
M12
3x30
M10
25
10,6
IKAC12089
99-108
99-108
179
75,5
M12
3x30
M10
25
10,8
IKAC12100
4"
108 - 116
188
80
M12
3x30
M10
25
11,3
IKAC12112
120-129
120-129
201
86,5
M12
3x30
M10
25
12,3
IKAC16118
129-135
129-135
226,5
95,5
M16
4x40
M12
10
10,4
IKAC16125
5"
135 - 143
233,5
99
M16
4x40
M12
10
10,8
IKAC16150
6"
162 - 168
256,5
106,5
M16
4x40
M12
10
11
IKAC16200
8"
206-220
316
133
M16
4x40
M12
10
13,6
IKAC16250
10"
260 - 274
365
160,5
M16
4x40
M12
10
15,9
*IKAC16300
12"
324
421
186
M16
5x50
M16
5
13,9
*IKAC16350
14"
355,6
453
201,5
M16
5x50
M16
5
14,95
*IKAC16400
16"
406,4
504,5
227,5
M16
5x50
M16
5
16,75
*IKAC16450
18"
457
564,2
244,5
M16
7x70
M16
2
11,44
*IKAC16500
20"
508
621,5
273,5
M16
7x70
M16
2
12,42
