HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE &
NUT - (IKA)
|
Heavy duty pipe clamps used for mounting of pipes to the walls (
vertical / horizontal ), ceilings and floors
-
Noise reduction level up to 15 dB according to DIN
4109
- Vibration reduction
-
Partial compensation of thermal expansion
-
Easy and safe assemble through hex head bolt and
nut
-
Side screws are protected against loss during assemble
with the help of plastic washers
- Electro galvanized against corrosion protection (Plating thickness
8-10 micron)
|
APPLICATION
|

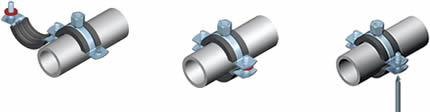

TECHNICAL PICTURE
|
| |
|
HEAVY DUTY PIPE CLAMP WITH RUBBER PROFILE & NUT - (IKA)
|
Size Inch
|
Breaking Load (KN)
|
Recommended Max Load (KN)
|
| 1/2 " - 2" |
11
|
2,75
|
| 67 - 129 |
15
|
3,75
|
129 - 10"
|
24
|
6
|
| 12" - 20" |
35.1
|
11,7
|
|
Code
|
Size Inch
|
Clamping Range
|
L
|
H
|
M
|
s x B
|
A
|
Quantity / Box
|
Weight / Box (Kg)
|
|
IKA12015
|
1/2"
|
20-24
|
84
|
32
|
M8
|
2,5x30
|
M12
|
50
|
10,5
|
|
IKA12020
|
3/4"
|
25-30
|
90
|
35
|
M8
|
2,5x30
|
M12
|
50
|
11
|
|
IKA12025
|
1"
|
32-38
|
98
|
39
|
M8
|
2,5x30
|
M12
|
50
|
11,5
|
|
IKA12032
|
1 1/4"
|
39-46
|
106
|
43
|
M8
|
2,5x30
|
M12
|
50
|
11,75
|
|
IKA12040
|
1 1/2"
|
48-53
|
114,5
|
47
|
M8
|
2,5x30
|
M12
|
50
|
13,75
|
|
IKA12047
|
54-58
|
54-58
|
120,5
|
50
|
M8
|
2,5x30
|
M12
|
50
|
14,9
|
|
IKA12050
|
2"
|
59-66
|
127
|
53
|
M8
|
2,5x30
|
M12
|
50
|
16
|
|
IKA12055
|
67-73
|
67-73
|
143,5
|
58
|
M10
|
3x30
|
M12
|
25
|
8,35
|
|
IKA12065
|
2 1/2"
|
74-80
|
152
|
62
|
M10
|
3x30
|
M12
|
25
|
9
|
|
IKA12072
|
80-87
|
80-87
|
160
|
66
|
M10
|
3x30
|
M12
|
25
|
9,5
|
|
IKA12080
|
3"
|
87-94
|
163
|
67,5
|
M10
|
3x30
|
M12
|
25
|
9,75
|
|
IKA12085
|
95
|
95-98
|
171
|
71,5
|
M10
|
3x30
|
M12
|
25
|
10,3
|
|
IKA12089
|
99-108
|
99-108
|
179
|
75,5
|
M10
|
3x30
|
M12
|
25
|
10,45
|
|
IKA12100
|
4"
|
108-116
|
188
|
80
|
M10
|
3x30
|
M12
|
25
|
11
|
|
IKA12112
|
120-129
|
120-129
|
201
|
86,5
|
M10
|
3x30
|
M12
|
25
|
12
|
|
IKA16118
|
129-135
|
129-135
|
226,5
|
95,5
|
M12
|
4x40
|
M16
|
10
|
10,25
|
|
IKA16125
|
5"
|
135-143
|
233,5
|
99
|
M12
|
4x40
|
M16
|
10
|
10,65
|
|
IKA16150
|
6"
|
162-168
|
256,5
|
106,5
|
M12
|
4x40
|
M16
|
10
|
10,9
|
|
IKA16200
|
8"
|
206-220
|
316
|
133
|
M12
|
4x40
|
M16
|
10
|
13,45
|
|
IKA16250
|
10"
|
260-274
|
365
|
160,5
|
M12
|
4x40
|
M16
|
10
|
15,7
|
|
*IKA16300
|
12"
|
324
|
421
|
186
|
M16
|
5x50
|
M16
|
5
|
13,9
|
|
*IKA16350
|
14"
|
355,6
|
453
|
201,5
|
M16
|
5x50
|
M16
|
5
|
14,95
|
|
*IKA16400
|
16"
|
406,4
|
504,5
|
227,5
|
M16
|
5x50
|
M16
|
5
|
16,75
|
|
*IKA16450
|
18"
|
457
|
564,2
|
244,5
|
M16
|
7x70
|
M16
|
2
|
11,44
|
|
*IKA16500
|
20"
|
508
|
621,5
|
273,5
|
M16
|
7x70
|
M16
|
2
|
12,42
|
|
|
