Product Name

HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE & 1" SLEEVE - (IKAM25)
Description
HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE & 1" SLEEVE - (IKAM25)

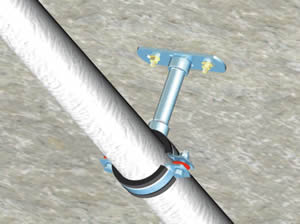

APPLICATION
TECHNICAL PICTURE


HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE & 1" SLEEVE - (IKAM25)

Size Inch
Breaking Load (KN)
Recommended Max Load (KN)
1/2 " - 2"
11,0
2,75
67 - 129
15,0
3,75
129 - 10"
24,0
6,00
12" - 20"
35.1
11,7



Code
Size Inch
Clamping
Range
L
H
M
sxB
A
Quantity / Box
Weight
/ Box
( Kg )
IKAM25015
1/2"
20 - 24
84
41
M8
2,5x30
1"
50
10,85
IKAM25020
3/4"
25 - 30
90
44
M8
2,5x30
1"
50
11,35
IKAM25025
1"
32 - 38
98
48
M8
2,5x30
1"
50
12,85
IKAM25032
1 1/4"
39 - 46
106
52
M8
2,5x30
1"
50
12,1
IKAM25040
1 1/2"
48 - 53
114,5
56
M8
2,5x30
1"
50
14,1
IKAM25047
54-58
54-58
120,5
59
M8
2,5x30
1"
50
15,25
IKAM25050
2"
59 - 66
127
62
M8
2,5x30
1"
50
16,25
IKAM25055
67-73
67-73
143,5
67
M10
3x30
1"
25
8,5
IKAM25065
2 1/2"
74 - 80
152
71
M10
3x30
1"
25
9,15
IKAM25072
80-87
80-87
160
75
M10
3x30
1"
25
9,65
IKAM25080
3"
87-94
163
76,5
M10
3x30
1"
25
9,95
IKAM25085
95
95-98
171
80,5
M10
3x30
1"
25
10,45
IKAM25089
99-108
99-108
179
84,5
M10
3x30
1"
25
10,6
IKAM25100
4"
108-116
188
89
M10
3x30
1"
25
11,15
IKAM25112
120 - 129
120 - 129
201
95,5
M10
3x30
1"
25
12,2
IKAM25118
129-135
129-135
226,5
100,5
M12
4x40
1"
10
10,32
IKAM25125
5"
135- 143
233,5
104
M12
4x40
1"
10
10,72
IKAM25150
6"
162 - 168
256,5
111,5
M12
4x40
1"
10
10,02
IKAM25200
8"
206 - 220
316
138,5
M12
4x40
1"
10
13,53
IKAM25250
10"
260 - 274
365
165,5
M12
4x40
1"
10
15,8
*IKAM25300
12"
324
421
193
M16
5x50
1"
5
14,07
*IKAM25350
14"
355,6
453
208,5
M16
5x50
1"
5
14,95
*IKAM25400
16"
406,4
504,5
234,5
M16
5x50
1"
5
16,72
*IKAM25450
18"
457
564,2
251,5
M16
7x70
1"
2
11,12
*IKAM25500
20"
508
621,5
282,5
M16
7x70
1"
2
12,52
