HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE (DOUBLE HANGING
NUT - (IKBC) | | |

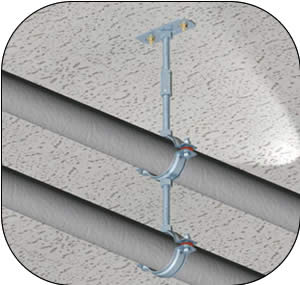

APPLICATION  |
TECHNICAL PICTURE
|
| | |
HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE (DOUBLE HANGING NUT - (IKBC)
| Size Inch | Breaking
Load (KN) | Recommended Max Load (KN)
| | 3/4 " - 74 | 11,0 |
2,75 | | 2 1/2" - 140 | 15,0 |
3,75 | 5" - 283
|
24,0 | 6,00 |
| 12" - 20" | 35.1 |
11,7 |
| Code |
Size Inch | Clamping
Range | L |
H | M |
s x B | A |
Quantity / Box | Weight
/ Box (Kg) | | IKBC12020 |
3/4" | 27-31 |
84 | 32 |
M8 | 2,5x30 |
M12 | 50 |
10,35 | | IKBC12025 |
1" | 32 -
37 | 90 |
35 | M8 |
2,5x30 | M12 |
50 | 10,65 |
| IKBC12032 | 1 1/4" |
39 - 46 | 98 |
39 | M8 |
2,5x30 | M12 |
50 | 11,15 |
| IKBC12040 | 1 1/2" |
47 - 54 | 106 |
43 | M8 |
2,5x30 | M12 |
50 | 11,4 |
| IKBC12050 | 2" |
54 - 61 | 114,5 |
47 | M8 |
2,5x30 | M12 |
50 | 13,15 |
| IKBC12053 | 60-67 |
60-67 | 120,5 |
50 | M8 |
2,5x30 | M12 |
50 | 13,9 |
| IKBC12055 | 68 - 74
| 68 - 74 |
127 | 53 |
M8 | 2,5x30 |
M12 | 50 |
15,2 | | IKBC12065 |
2 1/2" | 75-81 |
143,5 | 58 |
M10 | 3x30 |
M12 | 25 |
7,6 | | IKBC12080 |
3" | 83
- 92 | 152 |
62 | M10 |
3x30 | M12 |
25 | 8,3 |
| IKBC12085 | 90 - 98 |
90 - 98 | 160 |
66 | M10 |
3x30 | M12 |
25 | 8,5 |
| IKBC12087 | 94-104 |
94-104 | 163 |
67,5 | M10 |
3x30 | M12 |
25 | 8,8 |
| IKBC12092 | 104 - 110 |
104 - 110 | 171 |
71,5 | M10 |
3x30 | M12 |
25 | 9 |
| IKBC12100 | 4" |
110 - 119 | 179 |
75,5 | M10 |
3x30 | M12 |
25 | 9,2 |
| IKBC12108 | 117 - 126 |
117 - 126 | 188 |
80 | M10 |
3x30 | M12 |
25 | 9,6 |
| IKBC12120 | 129-140 |
129-140 | 201 |
86,5 | M10 |
3x30 | M12 |
25 | 10 |
| IKBC16125 | 5" |
138 - 143 | 226,5 |
95,5 | M12 |
4x40 | M16 |
10 | 9,25 |
| IKBC16133 | 144 - 154
| 144 - 154 |
233,5 | 99 |
M12 | 4x40 |
M16 | 10 |
9,65 | | IKBC16165 |
169 - 177 | 169
- 177 | 256,5 |
106,5 | M12 |
4x40 | M16 |
10 | 9,8 |
| IKBC16210 | 218 - 230 |
218 - 230 | 316 |
133 | M12 |
4x40 | M16 |
10 | 11,9 |
| IKBC16275 | 270 - 283 |
270 - 283 | 365 |
160,5 | M12 |
4x40 | M16 |
10 | 14 |
| *IKBC16300 | 12" |
324 | 421 |
186 | M16 |
5x50 | M16 |
5 | 13,9 |
| *IKBC16350 | 14" |
355,6 | 453 |
201,5 | M16 |
5x50 | M16 |
5 | 14,95 |
| *IKBC16400 | 16" |
406,4 | 504,5 |
227,5 | M16 |
5x50 | M16 |
5 | 16,75 |
| *IKBC16450 | 18" |
457 | 564,2 |
244,5 | M16 |
7x70 | M16 |
2 | 11,44 |
| *IKBC16500 | 20" |
508 | 621,5 |
273,5 | M16 |
7x70 | M16 |
2 | 12,42 |
| |
