HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE & 1/2"
SLEEVE - (IKBM15) | | |

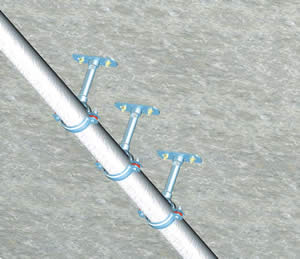

APPLICATION  |
TECHNICAL PICTURE
|
| | |
HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE & 1/2" SLEEVE - (IKBM15)
| Size Inch | Breaking
Load (KN) | Recommended Max Load (KN)
| | 3/4 " - 74 | 11,0 |
2,75 | | 2 1/2" - 140 | 15,0 |
3,75 | 5" - 283
|
24,0 | 6,00 |
| 12" - 20" | 35.1 |
11,7 |
| Code |
Size Inch | Clamping
Range | L |
H | M |
s x B | A |
Quantity / Box | Weight
/ Box (Kg) | | IKBM15020 |
3/4" | 27-31 |
84 | 35 |
M8 | 2,5x30 |
½" | 50 |
10 | | IKBM15025 |
1" | 32
- 37 | 90 |
38 | M8 |
2,5x30 | ½" |
50 | 10,25 |
| IKBM15032 | 1 1/4" |
39 - 46 | 98 |
42 | M8 |
2,5x30 | ½" |
50 | 10,75 |
| IKBM15040 | 1 1/2" |
47 - 54 | 106 |
46 | M8 |
2,5x30 | ½" |
50 | 11 |
| IKBM15050 | 2" |
54 - 61 | 114,5 |
50 | M8 |
2,5x30 | ½" |
50 | 12,75 |
| IKBM15053 | 60 - 67 |
60 - 67 | 120,5 |
53 | M8 |
2,5x30 | ½" |
50 | 13,75 |
| IKBM15055 | 68 - 74 |
68 - 74 | 127 |
56 | M8 |
2,5x30 | ½" |
50 | 14,8 |
| IKBM15065 | 2 1/2" |
75 - 81 | 143,5 |
61 | M10 |
3x30 | ½" |
25 | 7,52 |
| IKBM15080 | 3" |
83 - 92 | 152 |
65 | M10 |
3x30 | ½" |
25 | 8,1 |
| IKBM15085 | 90 - 98 |
90 - 98 | 160 |
69 | M10 |
3x30 | ½" |
25 | 8,4 |
| IKBM15087 | 94 - 104 |
94 - 104 | 163 |
70,5 | M10 |
3x30 | ½" |
25 | 8,6 |
| IKBM15092 | 104 - 110 |
104 - 110 | 171 |
74,5 | M10 |
3x30 | ½" |
25 | 8,85 |
| IKBM15100 | 4" |
110 - 119 | 179 |
78,5 | M10 |
3x30 | ½" |
25 | 9,2 |
| IKBM15108 | 117 -
126 | 117 - 126 |
188 | 83 |
M10 | 3x30 |
½" | 25 |
9,4 | | IKBM15120 |
129 - 140 | 129
- 140 | 201 |
89,5 | M10 |
3x30 | ½" |
25 | 10,15 |
| IKBM15125 | 5" |
138 - 143 | 226,5 |
94,5 | M12 |
4x40 | ½" |
10 | 9,3 |
| IKBM15133 | 144 - 154 |
144 - 154 | 233,5 |
98 | M12 |
4x40 | ½" |
10 | 9,55 |
| IKBM15165 | 169 - 177 |
169 - 177 | 256,5 |
105,5 | M12 |
4x40 | ½" |
10 | 9,75 |
| IKBM15210 | 218 - 230 |
218 - 230 | 316 |
132,5 | M12 |
4x40 | ½" |
10 | 11,35 |
| IKBM15275 | 270 - 283 |
270 - 283 | 365 |
159,5 | M12 |
4x40 | ½" |
10 | 13,9 |
| *IKBM15300 | 12" |
324 | 421 |
187 | M16 |
5x50 | ½" |
5 | 13,75 |
| *IKBM15350 | 14" |
355,6 | 453 |
202,5 | M16 |
5x50 | ½" |
5 | 14,63 |
| *IKBM15400 | 16" |
406,4 | 504,5 |
228,5 | M16 |
5x50 | ½" |
5 | 16,4 |
| *IKBM15450 | 18" |
457 | 564,2 |
245,5 | M16 |
7x70 | ½" |
2 | 10,85 |
| *IKBM15500 | 20" |
508 | 621,5 |
274,5 | M16 |
7x70 | ½" |
2 | 12,25 |
| |
