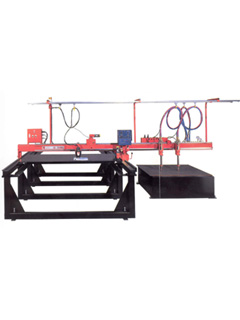

Coordinate Drive Flame Shape Cutting Machine
|
|
|
 Properties
Smooth machine motion: The drive of the X and Y travelling carriages
is powered by a combination of DC servomotor and friction roller
Controlled by signals from the tracer, the drive motor runs both
X and Y-axis
HL93 / 83 coordinate drive tracing system:
The optical HL93 / 83 tracing system automatically controls the
motion of a cutting machine by following a line or a silhouette
drawing
|
|
|
| Files : |
|
|
| Applications : |
|
The IK-2500G is designed to be general-purpose
oxy-fuel, plasma cutting machine. It has a cutting width of 2500 mm. Microprocessor
controls, plasma systems and other optional accessories provide high precision
cutting of parts within the size capability of the machine
|
|
| Cutting range |
2500 mm (W) x 3000 (L) |
| Tracing range |
2000 mm (W) x 1200 (L) |
| Rail Length |
4000 mm |
| Rail Span |
2280 mm |
| Tracer |
HL93/HL83 |
| Tracing Accuracy |
±0.5 mm |
| Kerf Compensation |
±1.5 mm |
| Tracing Speed HL93 |
100 - 1000 mm/min |
| Tracing Speed HL83 |
100 - 3000 mm/min |
| Automatic Lead In HL93 |
Possible in 4 directions |
| Automatic Lead In HL83 |
Possible in 8 directions |
| Automatic Offline Stop |
- |
| Cutting Thickness 1-2-3-4
Torch |
200-150-100-50 mm |
| Number of Torches |
2 pc's Standart / 2 pc's optional |
| Power Supply |
Single Phase 220V,AC,50 Hz |
|
|
| Segments of 3 mtr. extension
rail can be used for extending the 4 mtr. basic rail. |
|
3 mtr |
| Auto ignition unit |
|
|
| Plasmastation with HD-Riser
|
|
|
| Twin torch (2 parallel cuts
with one torch) |
|
|
| Water spray unit (Recommended
for thin plate cutting) |
|
|
| Circle cutting device |
|
Ø200-1200mm |
| Torch Bevel Attachment |
|
|
|
|
|
