| Product Name |
|
| PORTABLE CUTTING MACHINES >>> IK-54 - |
| Description |
|
|
|
|
 Properties
Compact and simple to operate

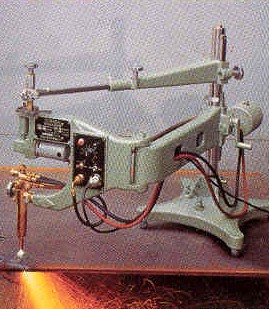

This fine Koike machine is most at home doing highly repetitive
work where it can continuously produce the same precision flame
cuts by following a steel template
A powerful magnet roller smoothly guides the cutting torch around
any shape, cutting steel plate up to four inches in thickness
Weighing in at only 33 kg (72.5lbs.), it can be carried anywhere
Besides the standard roller, optional rollers of various diameters
(0, 8, 15 and 20mm) are available for use with this machine. A change
of rollers permits cuts of different size with the same template
Using Koike 102 Oxy-acetylene or 106 Oxy-propane cutting tip ensures
the most accurate and efficient shape cutting available anywhere
An automatic switch permits simultaneous actuation of the cutting
oxygen and the motor
All operations have been simplified for labour saving and dependability
Easy vertical and horizontal adjustment of the template holder
facilitates centering and flange cutting
An extremely powerful permanent magnetic roller ensures precision
conformity to complicated template shape by preventing slippage
during the operation
An SCR control system is employed in this machine so that cutting
speed is highly stable
|
|
|
| Files : |
|
|
| Applications : |
|
The IK-54D is a quality constructed, hard-working
gas shape cutter for high production accuracy
|
|
Weight
|
33kg |
| Power |
110VAC/220VAC (50/60Hz) |
| Motor |
D.C. Shunt Motor 5W |
| Standard circle diam. |
30-70Omm |
| Using attachment |
600~1,70Omm |
| Square side |
30-60Omm |
| Using attachment |
500~1,20Omm |
| Cutting thickness |
3-10Omm |
| Cutting speed |
100~1,000mm/dak |
| Cutting accuracy |
+/- 0.5mm |
| Control system |
S.C.R. control |
| Magnet roller dia. |
1Omm |
|
|
| Cutting tip 102 (for acetylene)
106 (for propane) |
1 set |
| Cabtyre cord |
5m |
| Tip cleaner |
1 set |
| Wire brush |
1 |
| Spanner |
1 |
| Alignment device |
1 set |
|
|
|
|
|
