| Product Name |
|
| PORTABLE CUTTING MACHINES >>> MINI MANTIS II (ST Tip) - 5602240 |
| Description |
|
|
|
|
 Properties
Rail and main unit have been combined, so setting-up time is greatly
reduced
Single-lever rail clamping
SCR control for smooth, even cutting speed
Easy maintenance and checking
One touch flame adjuster
Nearly everything is automatic; setting the stop to the flange
size, for instance, shuts off the cutting oxygen when flange cut
is completed.
Easy to see and easy to use - even for someone using it for the
first time
The short torch (ST) means that when cutting several H-shapes
together, little spacing is required
Turning and marking the workpiece is unnecessary
The Mini-Mantis II is for cutting H-shape, but can also be used
on plate as well
The smooth, steady automatic cutting travel means that no follow-up
work is needed, you can start welding as soon as you've finished
cutting
Very light - total weight including rail is only 20kg
|
|
|
| Files : |
|
|
| Applications : |
|

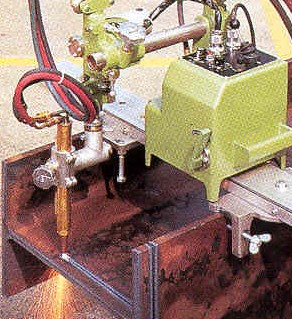

MINI MANTIS II is a H-shape steel gas cutting
machine.
|
|
| Total Weight With Rail |
20 Kg |
| Drive Motor Flange cutting
|
15W DC-shunt-wound motor |
| Drive motor Web cutting |
5W DC-shunt-wound motor |
| Speed control |
SCR control |
| Cutting capacity |
5 - 32 mm |
| Cutting speed |
100 - 700 mm/min |
| Raillength (Three Options)
|
1.100 mm / 1.400 mm / 2.100 mm |
|
|
|
|
|
|
|
|
