| Product Name |
|

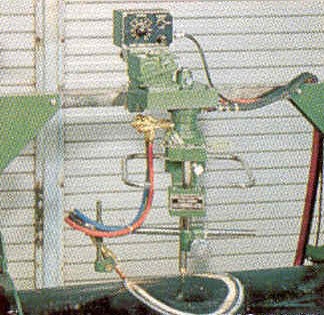

| PORTABLE CUTTING MACHINES >>> KHC 600D - 5602230 |
| Description |
|
|
|
|
 Properties
Use of the lever ensures easy setting of the tip height
The clutch mechanism facilitates tip positioning
The up/down interlock device employs a trigonometrical function
generating mechanism to ensure higher bevel accuracy than the conventional
crank mechanism
Use of rotary gas distribution prevents the hose from becoming
entangled
Circular cutting on the plane is also possible
Compact design and lightweight guarantee excellent portability
|
|
|
| Files : |
|
|
| Applications : |
|
KHC 600D is used for cutting T-joint circles
on pipes.
|
|
| Effective Cutting Diameter |
80 - 600 mm |
| Vertical torch stroke |
0-10O mm |
| Cutting thickness |
5 - 50 mm |
| Cutting speed |
0,12 - 1,2 rpm |
| Bevel angle |
0 - 45 degrees |
| Ratio between branch and
main pipe diameters 1:2 or more |
1:2 or more |
| Main pipe diameter |
80O mm or more |
| DC Schunt Motor |
15W, 5,000 rpm DC shunt motor |
| Speed control |
SCR |
| Machine dimensions (mm) |
760(H) x 1050(L) x 500 (W) |
| Weight |
26kg |
|
|
|
|
