| Product Name |
|

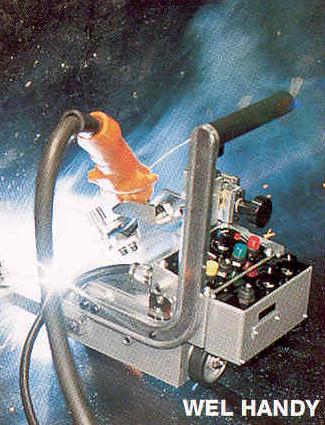

| PORTABLE WELDERS >>> WEL HANDY |
| Description |
|
|
|
|
 Properties
A powerful permanent magnet is installed on the bottom of the
trolley, providing a pull power of 14kg when the magnet switch is
set to ON
As a result, the trolley can provide stable and reliable runs
without being dragged down by the welding cable and power cable.
On steep angle as well, the cables are pulled easily
By installing an option, the welding carriage can also travel
along a vertical wall
The welding carriage can be quickly set up for continuous or tack
welding by operating a selector switch
The digital speedometer enables you to read speed quickly.
An automatic stop device enables the operator to stop the welding
carriage at any desired position.
The welding carriage weighs only 9.8kg, enabling it to be carried
easily.
During normal travelling of the welding carriage, if there is
no space, this unit enables you to attract the welding carriage
to the wall face and perform welding travel
|
|
|
| Files : |
|
|
| Applications : |
|
The WEL-HANDY-TC is the latest portable automatic
"fillet" welding carriage that can be set up for continuous
or tack welding by a selector switch.
|
|
| Drive method Magnet attraction, rubber roller
|
4-wheel drive 14kg |
| Welding method Continuous/tack welding
selectable |
|
| Torch holder Torch angle
(horizontal) |
40-45° (standard) |
| With Adjustment Unit |
40-60° (option) |
| Up-down adjustment |
34mm standard) 54mm (option) |
| Tractive pull power |
14 kgs |
| Travelling speed |
200 ~ 1.200 mm/min |
| Speedometer Digital display |
(mm/min) |
| Operation panel switch 1) Arc, 2)Drive,
3) Start, 4) Stop, 5) Speed adjustment |
|
| Automatic stop function Standard fitment
|
|
| Tracking method |
Guide roller |
| Standard tracking height |
4Omm |
| Distance left unwelded |
Start:120mm, End:120mm |
| Weight |
9,8 kg (main body) |
|
|
| Wall face travelling guide
roller/arm unit |
|
|
| Torch Clamp |
|
|
| Straight torch holder adjustment
unit (factory option)* |
|
|
| 40°-60° torch holder adjustment
unit (factory option)* |
|
|
| Heat prevention plate |
|
|
| Large diameter torch holder
(factory option)* |
|
|
| *Factory Options require a certain amount
of adjustment in order to maintain accuracy. To be ordered at the
same time as the welding carriage. |
|
|
|
|
|
|
|
