| Product Name |
|

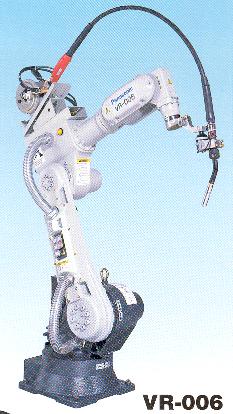

| WELDING ROBOTS >>> PANASONIC VR-006 |
| Description |
|
|
|
Weldin Robot
|
|
|
 Properties
Axis Versatile Industrial Robot
CO2 / MAG Welding
Pulsed MIG / MAG Welding
TIG Welding
Air Plasma Cutting
Windows CE operation controller (64 bit CPU)
-
Compact and space saving
High speed and smooth movement by robust arm and latest servo
technology.
Wide working envelope by the adoption of the independent articulated
axis configuration.
All axes have brakes for improved safety and operation.
Dust and water proof
-
Monitoring function of welding current and voltage.
Tip exchange timing control function.
Weaving function control.
|
|
|
| Files : |
|
|
|
Axis of Freedom
|
6 axis |
| Arm Rotation, Front Basis |
155 degrees |
| Maximum Work Envelope |
2.95 m2 x 310 degrees |
| Maximum Allowable Pay Load |
6 kg |
| - |
|
| Installation Position |
Floor / Ceiling |
| Temperature/Humidity |
0-40 degrees / 20-90% RH |
| Weight |
105 kg |
|
|
|
|
