| Product Name |
|

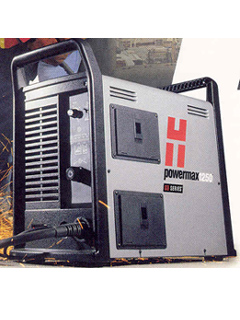

| AIR PLASMA CUTTING >>> Powermax 1250 |
| Description |
|
|
|
|
|
|
Hypertherm Plasma Cutting Machine
|
|
|
 Properties
Cuts 80% faster on 1-inch (25 mm) mild steel than any competitor
tested
Auto-voltage™ circuit provides automatic adjustment to any
input voltage from 200 to 600 volts
A state-of-the-art, microprocessor-based architecture assures
optimum system reliability
Advanced, digitally-controlled inverter design delivers
continuously adjustable constant current output, from 25 to
80 amps, permitting high-quality cuts.
An active electronic pilot arc controller for cutting expanded
metal or grating
New gouging setting allows for improved arc transfer, easier
operation and faster metal removal
The longest consumable life in the industry
|
|
|
| Files : |
|
|
| Applications : |
|
It is an inverter type plasma cutting
machine which cuts metals to 7/8 inch (22 mm) at cutting speeds
over 20 inches (50 cm) per minute, metals to 1-1/8 inch (29 mm)
at cutting speeds over 10 inches (25 cm) per minute and which has
a severance capacity of 38 mm.
|
|
| Input Voltage |
230 – 400 V, 3-faz, 50/60
Hz, CE |
| Output Voltage |
150 VDC |
| Output Current 60%
230 – 600 V, 3-PH |
80 A |
| Maximum Open Circuit Voltage |
300 VDC |
| Dimensions ( d x w x h ) |
586 x 271 x 488 mm |
| Weight with torch |
44 kg |
|
|
| Plasma Gas |
Air or Nitrogen |
| Shield Gas |
Air or Nitrogen |
| Flow Rate (Plasma Gas) |
189 l/min |
| Flow Rate (Shield Gas) |
189 l/min |
| Flow Pressure (Plasma
Gas) |
4,8 bar |
| Flow Pressure (Shield
Gas) |
4,8 bar |
|
|
|
|
|
|
