| Product Name |
|

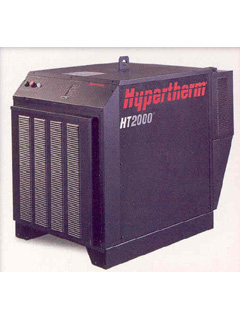

| GAZ PLASMA CUTTING >>> HT2000 Hypertherm |
| Description |
|
|
|
|
|
|
HySpeed Plasma with LongLife Oxygen Techonolgy
|
|
|
 Properties
Newest Hypertherm racing horse, developed based on Long-Life
consumables technology
Unparalleled productivity and low operating costs
Improved piercing and extended nozzle life protection of
the nozzle against double-arcing during cutting and piercing
Single electrode may deliver over 1200 starts before needing
replacement
100% Duty cycle at an output of 30 kW
Superior warranty coverage backs the HySpeed HT2000's power
supply for two years and its torch for one year
50 to 200 amps for materials that range in thickness from
4 mm to 50 mm
Production piercing of mild steel up to 25 mm thick, and
maximum piercing up to 38 mm
Bevel capability to 20 mm at 45°
Liquid-cooled torch contributes to long consumable parts
life and low operating costs
|
|
|
| Files : |
|
|
| Applications : |
|
200-amp oxygen plasma cutting system
with HySpeed plasma and LongLife oxygen technology, cutting thickness
between 6 - 50 mm.
|
|
| Input Voltage |
220/380/415 V, 3 PH, 50 Hz |
| Input current at 30
kW output |
98/57/52 A 220/380/415 V |
| Output voltage |
150 V DC |
| Output Current |
40-200 A |
| Duty Cycle |
100% |
| Maximum OCV |
280 V DC |
| Dimensions |
41.25 |
| Weight with torch |
780 lbs. (351 kg) |
| Plasma gas |
O2, Air, N2, Ar-H2 |
| Plasma pressure |
120 psi (8.3 bar) |
| Plasma flow |
80 scfh (40 l/min.) |
| Shield gas |
O2, Air, N2, Ar-CO2 |
| Shield pressure |
90 psi (6.2 bar) |
| Shield flow |
280 scfh (130 l/min.) |
|
|
|
|
|
|
