| Product Name |
|

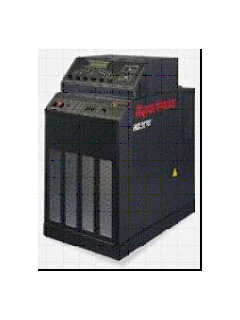

| GAZ PLASMA CUTTING >>> HD3070 Hypertherm |
| Description |
|
|
|
|
|
|
HyDefinition Plasma Cutting Machine
|
|
|
 Properties
Precision cutting at a fraction of the cost of lasers
Narrow kerfs produce straight, dross-free edges, eliminating
secondary finishing operations
Optimal results on all metals
Variable power output for high production speeds
Almost laser quality for thickness between 3 and 11 mm,
initial height sensing and gas flow take place simultaneously
reducing cycle time
Longer Consumable Life
Long System Life
Height and piercing control within the tightest tolerances
in the industry
|
|
|
| Files : |
|
|
| Applications : |
|
0,5 - 12,7 mm Thickness HyDefinition
Oxygen Plasma Cutting System with LongLife Oxygen Technology
|
|
| Input Voltages |
220/380/415 V, 3 faz, 50-60 |
| Input Current at 15
kW |
380 VAC, 30 A |
| Output Voltage |
150 VDC |
| Output Current |
100 A |
| Duty Cycle |
100% @ 9.1 kW, 40ｰC'de; 80% 15 kW,
40ｰC'de |
| Maximum OCV |
280 VDC |
| Dimensions |
38 |
| Weight |
545 lbs (247 kg) |
| Plasma Gas |
O2, Air, Ar-H2-N2 |
| Pressure (Plas) |
120 psi (8.3 bar) |
| Flow (Plas) |
0 scfh (24 I/min.) |
| Shield Gas |
O2/N2, Air-CH4, N2 |
| Pressure (Shld) |
120 psi (8.3 bar) |
| Flow (Shld) |
83 scfh (39 l/min.) |
|
|
|
|
|
|
