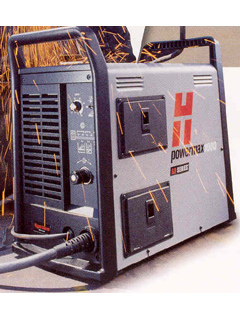

Hypertherm Plasma Cutting Machine
|
|
|
 Properties
Auto-voltage - no manual rewiring
Boost Conditioner compensates for low-line and power-line
fluctuation
Uses low-cost compressed air or nitrogen
Continous pilot arc switch for cutting expanded metal or
grating
Gouging consumables available
Standard ETR (Easy Torch Removal)
Optional wheel kit and air filtration kit
T60 and T60M torches
|
|
|
| Files : |
|
|
| Applications : |
|
The Powermax 1000 G3 Series cuts over
50% faster than any other competitor tested on 3/4 inch (19mm) mild
steel. Cutting speeds for quality cut for 1" thickness is,
10 inch per minute and for 3/4" thickness is, 20 inch per minute.
Severence is at 1 1/4".
|
|
| Line Voltage (1/3 Phase) |
200-600 V / 50-60 Hz |
| Line Power (35%) |
|
| Line Current (1ph/230 V) |
44 A |
| Line Current (3ph/400 V) |
15 A |
| Output Voltage |
140 VDC |
| Output Current (50%) |
60 ADC |
| Output Current Range |
20 - 60 ADC |
| Maximum Open Circuit
Voltage |
300 VDC |
| Dimensions ( l x w x h ) |
586 x 271 x 498 mm |
| Weight |
37 kg |
|
|
| Plasma Gas |
Air or N2 |
| Shielding Gas |
Air or N2 |
| Flow Rate (Plasma Gas) |
189 lt/min |
| Flow Rate (Shielding
Gas) |
189 lt/min |
| Flow Pressure (Plasma
Gas) |
4.8 bar |
| Flow Pressure (Shielding
Gas) |
4.8 bar |
|
|
